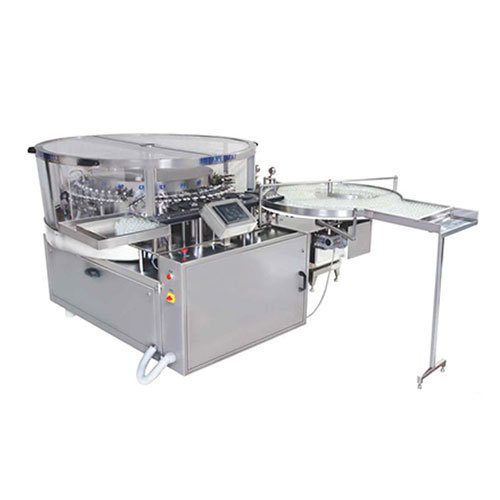

Automatic High Speed Rotary Vial Washing Machine

Approx Price:

Continuous type rotary motion washing system.
Washing process visible.
Servo driven dive-in type washing nozzles for ease of setting.
Water heater for Recycled water tank with temperature controller and interlock.
Three types of water washes such as Recycled Water Wash, Purified Water Wash & WFI followed by
Sterile Compressed Air.
Code-7 type Air & Water filters.
Pressure transmitter system for Air & Water with Interlock.
Temperature transmitter system for Monitoring recycled water temperature with Interlock.

Rotary vial washing machine is designed to wash internal and external surface of vials in continuous rotary motion. Vials are held by grippers which will invert its position to allow servo driven nozzles moving vertically in order to wash vials from the inside. It has 6 washing stations covered in dome, providing three types of internal water washes such as Recycled Water Wash, Purified Water Wash & WFI wash and three air washes where as to clean external surface it has one water and air wash controlled by PLC. The design of machine is compact and ensures a clear visibility of washing activity.

Salient Features

Geneva Mechanism.
Four inner (Included one air wash) & one outer.
Sequence of washes to customer’s choice.
Easy operation.
Stationary nozzles eliminate contamination of water cycles.
Easy loading and unloading.
Individual solenoid valve for each washing sequence, that eliminates carbon plate and other accessories.
reduce leakage and maintenance to minimum.
Higher capacity centrifugal pumps to wash bigger bottles (500 & 1000 ml.).
The stationary nozzles avoid chipping of bottle necks.
Pumps and tanks are mounted on portable stand for easy maintenance.
Bottle guide especially for lightweight bottle.
Pumps and tanks are mounted on portable stand for easy maintenance.
Separate panel control to avoid any short circuit due to spraying of water.
S.S. glycerin fill pressure meter.

Technical Specification of Automatic High Speed Rotary Vial Washing Machine

Model	JSK-RW120	JSK-RW240
Production Output	Up to 100 per minute	Up to 200 per minute
Ampoule Diameter	9mm to 21.5mm	9mm to 21.5mm
Ampoule Height	600mm to 140mm	600mm to 140mm
Power Load	4H.P.	5.5H.P.
Power Voltage	440 Volts, 3 Phase 50 Herts, 4 wire system	440 Volts, 3 Phase 50 Herts, 4 wire system
Optional Accessories	Programmable Logic Control System with HMI	Programmable Logic Control System with HMI
Optional Accessories	Safety Cabinet with Doors	Safety Cabinet with Doors
Utility	Air – 20 CFM	Air – 20 CFM
Utility	Water – 200 to 500 Liters per hour depend upon ampoule size	Water – 200 to 500 Liters per hour depend upon ampoule size
Water Tank & Pump	3 nos. each with 25 liters capacity & Centrifugal pump	3 nos. each with 25 liters capacity & Centrifugal pump
Overall Dimension	2050mm (L) X 2000mm (W) X 1210mm (H) approx.	2450mm (L) X 2000mm (W) X 1300mm (H) approx.
Net Weight	700kgs. approx	900kgs. approx
* Power voltage can be adjusted as per customers domestic power voltage requirements * Rights of technical improvements and modification reserved
