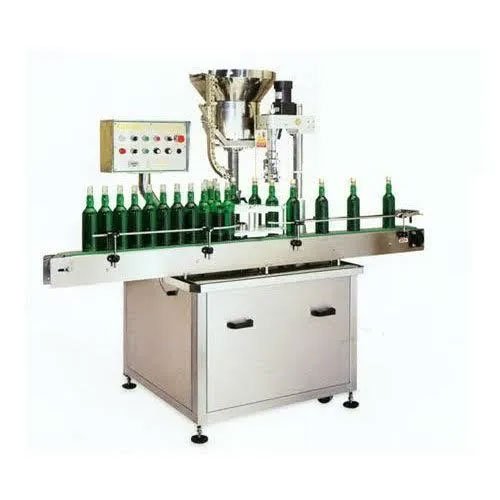

Automatic Linear Screw Capping Machine

Approx Price:

Category: Bottle Capping Machine, Capping Machine

Output/Hour: 7200 bottles.
Direction of Movement: Left to Right
No. of Sealing Roller: 6 Nos.
Height of Conveyor: 860 mm to 910 mm
Machine Dimension: 2000 L x 900 W x 1800 H
Case Dimensions: 2200 mm (L) x 1100 mm (W) x 2000mm (H) Approx.

SALIENT FEATURES:

No container No cap arrangement.
SS elegantly matt finished body.
Adjustable height of conveyor belt, to align with other machine of the line.
Sealing RPM can be varied to suit different gauges and size of caps.
Low noise level, low power consumptions.
Self-lubricating UHMW-PE guide profile for low friction wears surface, smooth and noiseless conveying.
SS cladding or hard chrome platting of all exposed parts to ensure long life and resistance against corrosion.
Saparet A/C drives to synchronize, Conveyor, gripping roller & capping bowl.
Adjustable bottle height gauge for easy and quick setting.

OPTIONAL FEATURES:

PLC Control.
Acrylic cabinet for safety work.
Safety guards for doors.
Cap feeder empty machine stop system.
Unsealed bottle rejection system
Cap Elevator for Autoloading of Cap in Cap Feeder / Bowl

TECHNICAL SPECIFICATION
Output/Hour	7200 bottles
No. of Sealing Roller	6 Nos
Electrical Specification	Main Motor	1.5 HP / 415 Volts / 50 Hz
	Conveyor motor	0.25 HP / 415 Volts / 50
	Cap Feeding Vibrator	6 / 12 AMP
Height of Conveyor	860 mm to 910 mm
Machine Dimension	2000 L x 900 W x 1800 H
Case Dimensions	2200 mm (L) x 1100 mm (W) x 2000mm (H) Approx.
Net Weight	750 Kgs. Approx
Gross Weight	1150 Kgs. Approx.
Change parts required	(A) Cap Delivery Chute, Bowl
INPUT SPECIFICATIONS:
Screw Cap Specification	Diameter	40 mm to 90 mm
	Height	15 to 30 mm
Container Size	Container Thickness	30mm to 70mm Flat Bottle (as per sample 100ml to 1 Liter)
	Container Width	Up to 150mm
	Container Height	100 to 250 mm
UTILITY REQUIREMENT
Electrical supply	3 Phase + Neutral + Earthing
Electrical load	1 KW
