Approx Price:
Vial Diameter: 25mm to 38mm
Vial Height: 75mm Maximum
Rubber Stopper Diameter: 20mm
Filling Range: 50mg. To 1.5 gms. In Single Dose, 1.5 gms. To 6 gms. In Double, Triple and Four Dose system
Accuracy: +/- 1% Depending upon the Powder, under the controlled level of Humidity

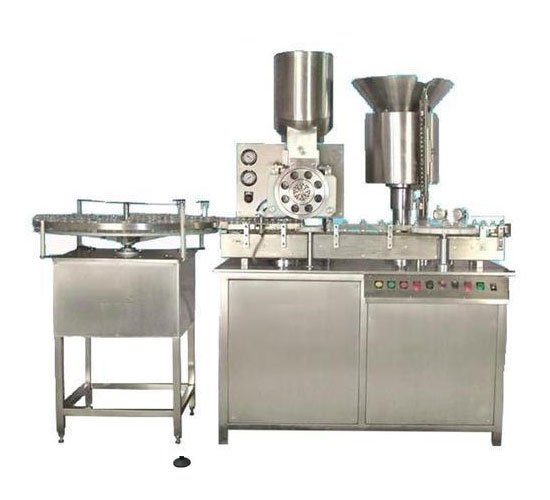

| SPECIAL FEATURES OF VIAL FILLING MACHINE: |
| No Vial – No Fill System |
| All contact parts made of SS316 material |
| Vial Filler Machine construction in SS304 material |
| Separate Variable Speed Drive for Powder Hopper |
| No Crossover Contamination during Charging of Powder |
| Hopper can be completely dismantle for easy cleaning |
| Less wastage of powder, Less adjustment of Doctor Blade and Wiper Blade saves time. Less change over for Well Agitator and Powder Hopper |
| Accuracy in filling +/- 1% depending on powder at controlled humidity below 30% Rh |
| Built in Rubber Stoppering System |
| Multiple dosing system |
| Inbuilt Turn Tables with Separate Drive for speed control |
| Safety features like Clutch system for Vial Breakage |
| Machine Bottom with minimum clearance of 6” Height |
| Moving conveyor above the top plate maintaining proper gap for meeting current application needs. |
| Automatic Infeed and Exit of Vials |
| Powder Hopper for charging with better position and design without crossing the line. |
| No Stopper – Machine Stop System |
| Low Air – Machine Stop System |
| Low Vacuum – Machine Stop System |
| Heavy Duty mounting system for Powder Wheel for trouble free operation |
| TECHNICAL SPECIFICATION OF VIAL FILLER | |
| Model No. | JSK-VPF- 4 |
| Vial Diameter | 25mm to 38mm |
| Vial Height | 75mm Maximum |
| Rubber Stopper Diameter | 20mm |
| Filling Range | 50mg. To 1.5 gms. In Single Dose, 1.5 gms. To 6 gms. In Double, Triple and Four Dose system |
| Accuracy | +/- 1% Depending upon the Powder, under the controlled level of Humidity |
| Humidity | Below 30% Rh required on machine to be arrange by customer |
| Electrical | 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive |
| Power | 2.0 H.P. |
| Compressed Air | Filtered, Oil Free 4kg/cm2 provided by customer only |
| Vacuum | 28” Hg. @ 300 LPM, provided by Customers only, 500LPM recommended |
| Conveyor Height | 815-940 mm |
| Overall Dimensions | 2800 mm (L) x 840 mm (W) x 1675 mm |
| Production Output | Max. 120 Vials per minute in Single Dose, Max. 60 Vials per minute in Double Dose, Max. 40 Vials per minute in Tripple Dose and Max. 30 Vials per minute in Four Dose system |
