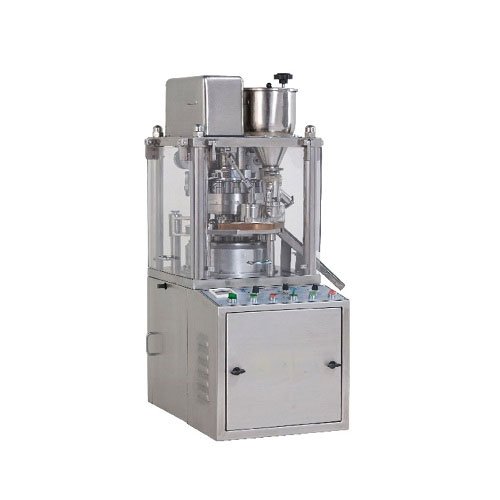

Bilayer Tablet Compression Machine

Approx Price:

We are renowned supplier, trader and manufacturer of Bi-layer Tablet Press machines which are perfectly suitable for small scale production of tablet. The machine is also ideal for research and development and pilot projects. All the contact parts in the machine are made using stainless steel 316. Machine is also equipped with pre-compression and gravity feeding system.

Machine consists of 3 piece turret in which upper and lower piece come with Electro less Nickel Phosphorus plating coated on it. Best credibility ensured by following GMP standards. Different variants of the machine are available in 9D, 11B, and 10DB configurations. As per the requirements of industrial unit, customization is also available. Pre-compression, force feeding system, Turret equipped with lower punch key way and CFC system can be made available on client request.

Bi-layer Tablet Press machine is capable to provide output of 23,000 tablets per hour. Contact our expert team and get quotes of various variants of the machine which suite your specific industry like pharmaceutical, chemical and drug & medicines. Check out the specifications and features and contact us or visit our outlet to know more offers and discounts available. We also offer post sales service and 24*7 customer care services.

Salient Features:- B4 Type Double Rotary Tablet Press

Heavy Duty Square GMP Model of Bi Layer Tablet Press Machine.
C.I. Body and C.I. Middle plate.
Paint free tablet manufacturing zone.
Turret of Special Grade S.G. Iron casting.
Disc type mechanical clutch start system.
Upper punch penetration system.
Electronic. Digital Tablet cum RPM Counter.
Double Sided lifting cams.
Aluminum Turret Guards.
Effective Dust Extraction Nozzles.
Imported needle roller bearing provided at the bottom of turret.
Variable Speed pulley, One shot Lubrication System, (ACVF Drive Optional)
Reverse direction motion protection is provided to avoid accident.
With extra hand wheel for easy punch loading.
B4 Type Double Rotary Tablet Making Machine can be available with PLC (Optional)
Machine can be equipped to compress Bi- Layer Tablet Press (Optional)

Technical Specifications

Machine Type	JSK-27D	JSK-35B	JSK-45BB
Type of Tooling	D	B	BB
Number of Stations	27	35	45
Output – Tablets/Hr.*	50000 to 129000	70000 to 168000	90000 to 216000
Max. Operating Pressure	10 Tons	6.5 Tons	6.5 Tons
Max. Tablet Diameter	23 mm	16 mm	11.11 mm
Max. Depth of Fill	20 mm	17.5 mm	17.5 mm
Upper Punch Penetration	1.5 to 8 mm	1.5 to 8 mm	1.5 to 8 mm
Main Electric Motor	3.70 kW / 5Hp / 1440 RPM / 415 V / 50 Hz / 3 Ph
Overall dimensions (cm)	109 X 109 X 182 H
Case Dimension (cm)	131 X 137 X 204 H
Net weight	1143 kg
Grass Weight	1400 kg
*Depending upon the characteristics of material, shape & size of tablets
