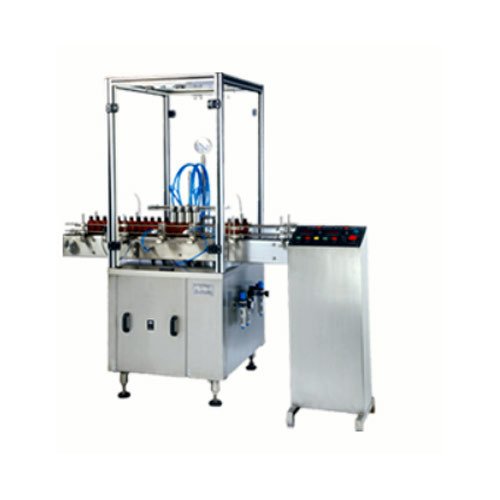

Linear Air Jet Cleaning Machine

Approx Price:

Output / Hour: 2600 to 6000
Direction of Machine: Left to Right
Main Motor: 1.0 HP / 415 Volts / 50 Hz
Blower Motor: 0.75 HP / 415 Volts / 50 Hz
Blower Tank Capacity: 120 cfm
Working height: 850 to 900 mm
Consumption of Air: 6 Kg/cm2

The machine operates on the concept of back pressure of the bottle, which is supplied by the Turn Table to the conveyor, which has one star plate that is controlled manually and includes a clutch to avoid damage. The function of the star plate is to push the bottle into the inverter. There are three zones: the first is the inverter, which reverses the bottle, the second is the cleaning section, which supplies air pressure, and the third is the vacuum section, which collects dust and is attached to a dust extractor. After this procedure, the bottle is to be inserted into the third zone (inverter), which transforms the bottle into actual position for the following operation.

TECHNICAL SPECIFICATION OF LINEAR AIRJET CLEANING MACHINE
Out put / Hour	2600 to 6000
Direction of Machine	Left to Right
Power Consumption	Main Motor	1.0 HP / 415 Volts / 50 Hz
	Unscrambler	0.25 hp
	Blower Motor	0.75 HP / 415 Volts / 50 Hz
Blower Tank Capacity	120 cfm
Working height	850 to 900 mm
Consumption of Air	6 Kg/cm2
Machine Dimension	2200 mm (L) x 750 mm (W) x 850 mm (H)
Case Dimensions	2500 mm (L) x 900 mm (W) x 1050 mm (H)
Net Weight	600 Kgs.
Gross Weight	850 Kgs
INPUT SPECIFICATIONS
Container Size	Round Shape	Ø 32 mm to Ø60 mm Respectively height, 50 mm to 180 mm
	Flat / Square	Ø 22 to Ø 28 Neck
UTILITY REQUIREMENT
Electrical supply	3 Phase + Neutral + Earthing
Electrical load	2.0 HP, 1.51 KW
Air Pressure	6 Kg/cm2
