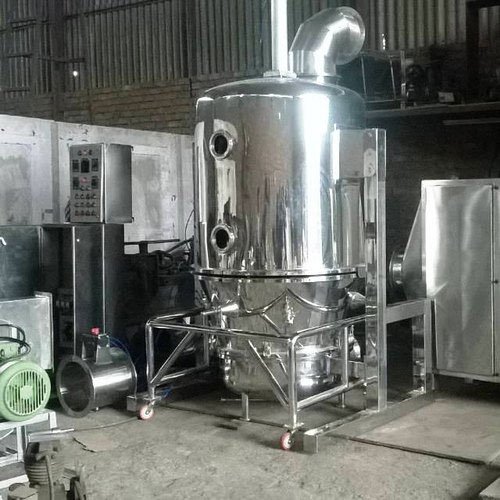

Used Fluid Bed Dryer

Approx Price:

Contact Parts: S.S. 316 as per GMP
Heating Mode: electrical / steam / thermic fluid
Batch Capacity: 5kg. to 300kg
Bowl Volume (Liters): 35 to 925 ltr
Maximum Capacity: 5 kg to 500 kg
Automation Grade: Automatic, Semi Automatic also available

Salient Features for Used Fluid Bed Dryer

All contact parts are S.S. 316 as per GMP Standard.
Uniform Drying at low temperature
Intrinsically safe earthing system ensures complete elimination of static charge.
65% open perforated air distribution plates along with Dutch weave mesh.
On line sampling Port. (optional)
Fan motor unit & Filtration unit can be placed in remote areas
Heating mode electrical / steam / thermic fluid.
Pneumatically operated inflatable seals provided for filter bag and product container sealing with pressure switches & FRL to ensure fail safe operation.
Minimum handling more Hygienic.
to 300kg. batch capacity
Explosion relief disc.

Old FBD Advantages

Drying, Granulating & Coating in one unit.
High Degree of flexibility.
Quick & easy filter replacement.
Easy cleaning.
Flame proof Construction.
Easy Cleaning.
Customized units.
Turnkey units.

Second Hand Fluid Bed Dryer Applications

Pharmaceutical
Bulk Drug
Dyes & Chemical
Phyto-Chemical
Catalyst
Food Product & Starch derivative
Agro
Pesticides

Technical Specifications for Fluid Bed Dryer
Model	FBD-10	FBD-30	FBD-60	FBD-120	FBD-150	FBD-200	FBD-250	FBD-300
Bowl Volume (Liters)	35	110	230	425	500	625	780	925
Batch Size (Kgs)	Oct-13	30-35	60-70	120-140	150-175	200-225	250-270	300-325
Heating Load : (kw) For Electrical Heating	6	18	36	54*	60*	Electrical Heating not recommended.
Approx. steam Consumption Kgs/hr. (Steampressure 3.5 Kg. /cm2)	15	25	50	100	130	170	200	250
Motor (H.P.)	2	5	10	15	20	20	25	30
Drying Temp C*	50-80	50-80	50-80	50-80	50-80	50-80	50-80	50-80
Height (Approx) mm	2000	2250	3000	3500	3500	3900	4000	4200
Width (Approx) mm	1050	1400	1550	1800	1850	2000	2100	2150
Length (Approx) mm	800	1250	1500	1700	1700	2000	2100	2200
